Slovenian Wind And Solar Hybrid Street Light Project Off Grid Power Supply System
Quick Details
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Life span: at least 20 years
- Solar WindHybrid Power Lamp System Installed in 2010 Shenzhen Xin'an Rd
Description:
Do you want to benefits from Maglev Wind Generator ,PV Hybrid Power Lamp System?
Maglev wind generator have 2 models, 500W, 600W, for lamp application system.
For the lamp system power supplying renewable energy, it is a project in south China (average wind speed 3m/s ). Total 15 lamps installed.
Generally the configuration as below:
Maglev wind generator : 300W, 24V 1 sets
Solar Panel : 80W,24V 2 pcs
Camera : 45W,24V 1 pcs
Tower : 7.2 m
Gel Batteries : 200AH, 2 pcs
Solar WindHybrid Power Lamp System Installed in EU

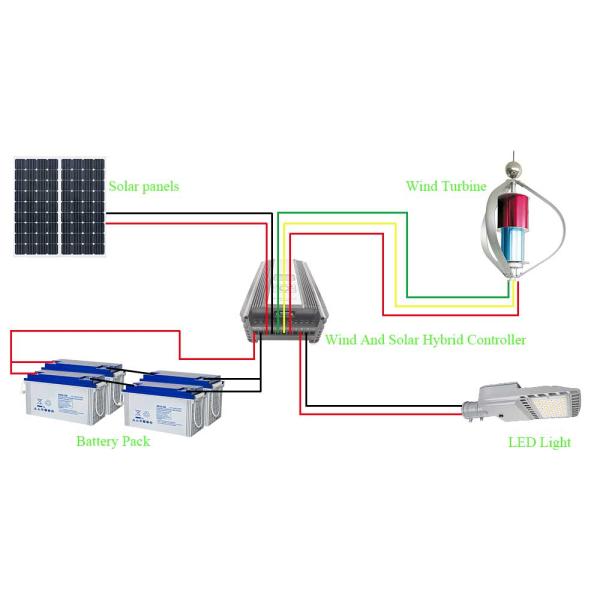

Schematic diagram of the wind and solar hybrid system:
Advantages:
| Rated power | Approx. 300Wh at 13 m/s (26 mph) |
| Swept Area | 0.8 m2 |
| Height / Diameter | 1.23/1.09 m |
| Weight | 27 kg |
| Shipping Dimensions | 1160 x 520 x 790 mm 56 kg |
| Startup Wind Speed | 1 m/s (2.6 mph) |
| Voltage | 12, and 24 V AC |
| Turbine Controller | Smart Wind $ solar hybrid controller |
| Body | Permanent mold cast aluminum |
| Blades | (7) Injection-molded aluminum |
| Alternator | Permanent maglev generator |
| Overspeed Protection | 3 phases short-circuit braking control |
| Survival Wind Speed | 65m/s |
| Mount | Inner diameter 80MM 140mm outer diameter |
| Wind Speed Operating Range | 1-15 m/s (8-49 mph) |
| Optimum Wind Speed Range (RPM) | 8-10 m/s ( 750-800RPM) |
